Camera Vision Alignment
Integrated camera support helps identify part position and align the marking area for accurate, repeatable results.
Camera-assisted laser marking system
Vision Laser Marking Machine
Marvel Industrial Solution's Vision Laser Marking Machine is built for accurate positioning, automated identification and reliable marking verification. It helps manufacturers achieve repeatable QR code, barcode, logo and batch marking.
Product overview
Camera-Guided Marking for Accurate Product Traceability
Vision laser marking combines permanent fiber laser marking with camera-based positioning and inspection. The system can locate components, align the marking file, verify code readability and reduce manual setup errors, making it suitable for manufacturers who need consistent marking on moving parts, trays, fixtures, tags or irregularly positioned components.
- Vision camera alignment for accurate mark placement
- Permanent QR code, barcode, serial number and logo marking
- Optional conveyor, fixture and rotary marking integration
- Code reading and verification support for traceability workflows
Key features
Designed for Smart Positioning, Reliable Codes and Fast Output
Machine-Readable Codes
Supports QR codes, barcodes, Data Matrix codes, serial numbers and batch codes for production traceability.

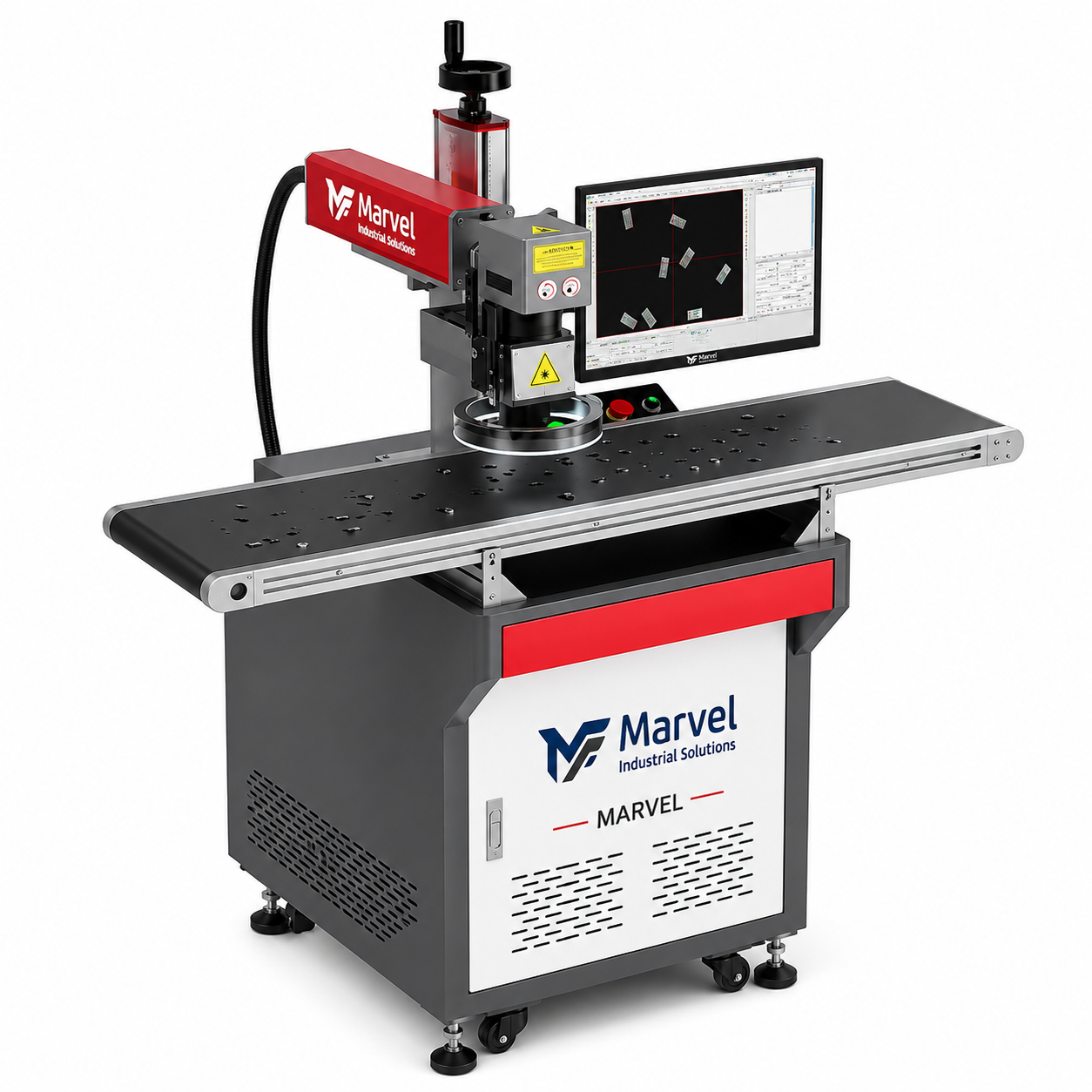

Conveyor Marking Workflow
Conveyor and fixture options support repetitive marking of tags, plates, components and product batches.
Permanent Fiber Marking
Creates durable marks without ink, stickers or solvents, helping reduce running cost and consumable handling.
Vision Verification Support
Camera-assisted inspection can help confirm mark position and code readability before parts move forward.
Production-Ready Design
Robust marking head, adjustable Z-axis and industrial control layout support daily factory operation.
Technical specifications
General Vision Marking Models and Machine Parameters
General Marking Capability
These are general industry-standard specifications. Final configuration can be selected based on part size, marking area, camera requirement and production speed.
| Marking Materials | SS, MS, aluminum, brass, copper, coated metals, labels and selected plastics |
|---|---|
| Vision Function | Part location, mark alignment, code reading and verification support |
| Marking Area | 110 x 110 mm / 150 x 150 mm / 200 x 200 mm / 300 x 300 mm |
| Camera Resolution | 2 MP / 5 MP / 12 MP options, depending on application |
| Positioning Accuracy | +/-0.05 mm typical, subject to fixture and camera setup |
| Model Sequence | VLM20 / VLM30 / VLM50 / VLM100 |
Core Parameters
Available as standalone, conveyor-based or fixture-integrated marking systems for factory production use.
| Laser Source | Pulsed fiber laser, 1064 nm |
|---|---|
| Output Power | 20 W / 30 W / 50 W / 100 W |
| Marking Speed | Up to 7000 mm/s typical, depending on code size and material |
| Vision Software | Camera positioning, template matching, code reading and data import support |
| Cooling Method | Air cooling |
| Operating Voltage | Single-phase 220VAC, 50Hz |
Applications and industries
Smart Marking for Traceability, Coding and Inspection Work
Vision laser marking machines are widely used for automotive parts, electrical components, tools, bearings, nameplates, metal tags, medical instruments, packaging parts, electronics, hardware and production lines where position accuracy and code verification matter.
- Automotive and engineering part traceability
- QR code, barcode and Data Matrix marking
- Electrical, electronics and nameplate coding
- Tray, fixture and conveyor-based batch marking
- Quality control, UID and inspection-linked marking
Benefits and highlights
A Smart Marking Upgrade for Controlled Production
Business Benefits
- Reduced marking errors through camera-assisted positioning
- Reliable code quality for traceability and dispatch control
- Faster batch marking with conveyor or fixture support
- Lower running cost compared to ink, label or manual marking
Technical Highlights
- Vision template matching for part location and alignment
- High-speed galvo scanner with fine marking resolution
- Supports database, serial number and variable data marking
- Installation, operator training and process support available

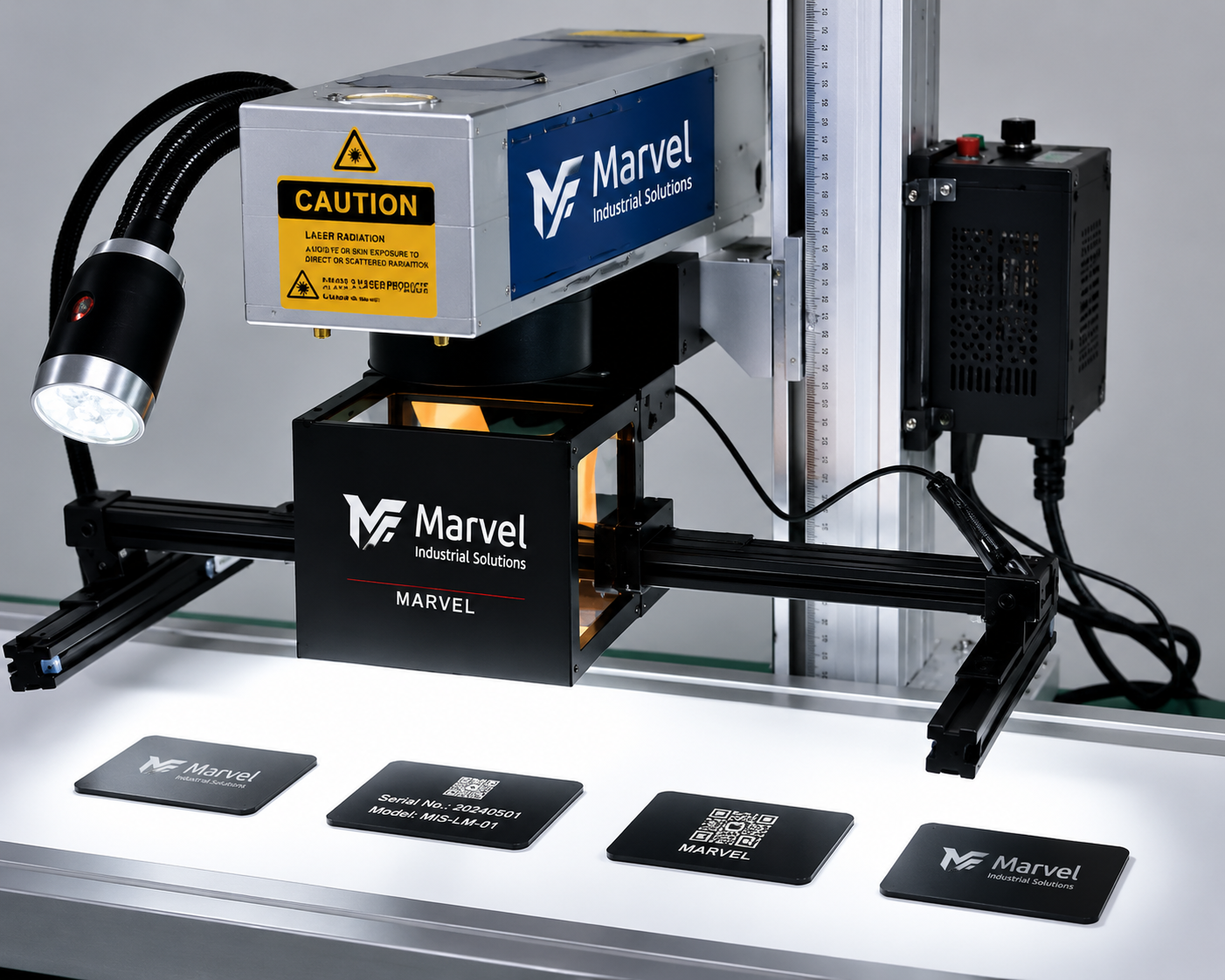

Vision marking process
Accurate Marking Placement with Camera Assistance
The camera-assisted marking head helps align artwork with the actual part position before marking. This is useful for small components, trays, tags and products where manual placement variation can affect mark quality or scanning performance.
- Better control over mark position and orientation
- Suitable for repeated marking on multiple parts or tags
- Supports quality-focused production and traceability workflows
Product inquiry
Send Inquiry for Vision Laser Marking Machine
Share your material, marking content, component size, camera requirement, city and production target. Marvel Industrial Solution will contact you with the right machine guidance and quotation details.
Product enquiry
Need a Vision Laser Marking Machine?
Share your material, marking content, camera need, conveyor requirement and production target. Marvel Industrial Solution will help you select the right VLM20, VLM30, VLM50 or VLM100 configuration.
Vision Laser Marking Machine Buyer's Guide
Vision laser marking is a strong choice for businesses that need permanent identification with better control over placement and code readability. It is especially useful when components are placed in trays, moved on conveyors or marked with variable data that must remain traceable through production and dispatch.
Who should choose this machine?
This machine is ideal for automotive suppliers, electronics manufacturers, engineering component makers, packaging units, hardware producers, nameplate makers and businesses that need camera-guided QR code, barcode, serial number or logo marking.
Which power option is suitable?
VLM20 and VLM30 are suitable for regular surface marking and code identification. VLM50 is recommended for faster production and stronger marking on metals. VLM100 is suitable when higher throughput, deeper marking or demanding industrial traceability is required.
Why choose this product?
Marvel Industrial Solution provides practical machine selection, vision setup guidance, installation, operator training and after-sales support. The machine is suitable for businesses that want permanent marking with better positioning control, lower consumable cost and improved traceability.
Frequently asked questions
What is the advantage of vision laser marking?
Vision laser marking uses a camera to help locate the part, align the mark and support code verification, reducing placement errors in repetitive production.
Can it mark QR codes and read them after marking?
Yes. With the right camera and software configuration, the machine can mark QR codes, barcodes and Data Matrix codes and support readability verification.
Can this machine be connected with a conveyor?
Yes. Conveyor, fixture and rotary options can be configured depending on part size, marking cycle time and production workflow.
Is operator training provided?
Yes. Marvel Industrial Solution provides installation, operator training and after-sales support for industrial users.
