Cold UV Laser Marking
355 nm UV laser marking creates fine, clean marks with low thermal impact on sensitive plastics, films and packaging surfaces.
Online UV laser coding system

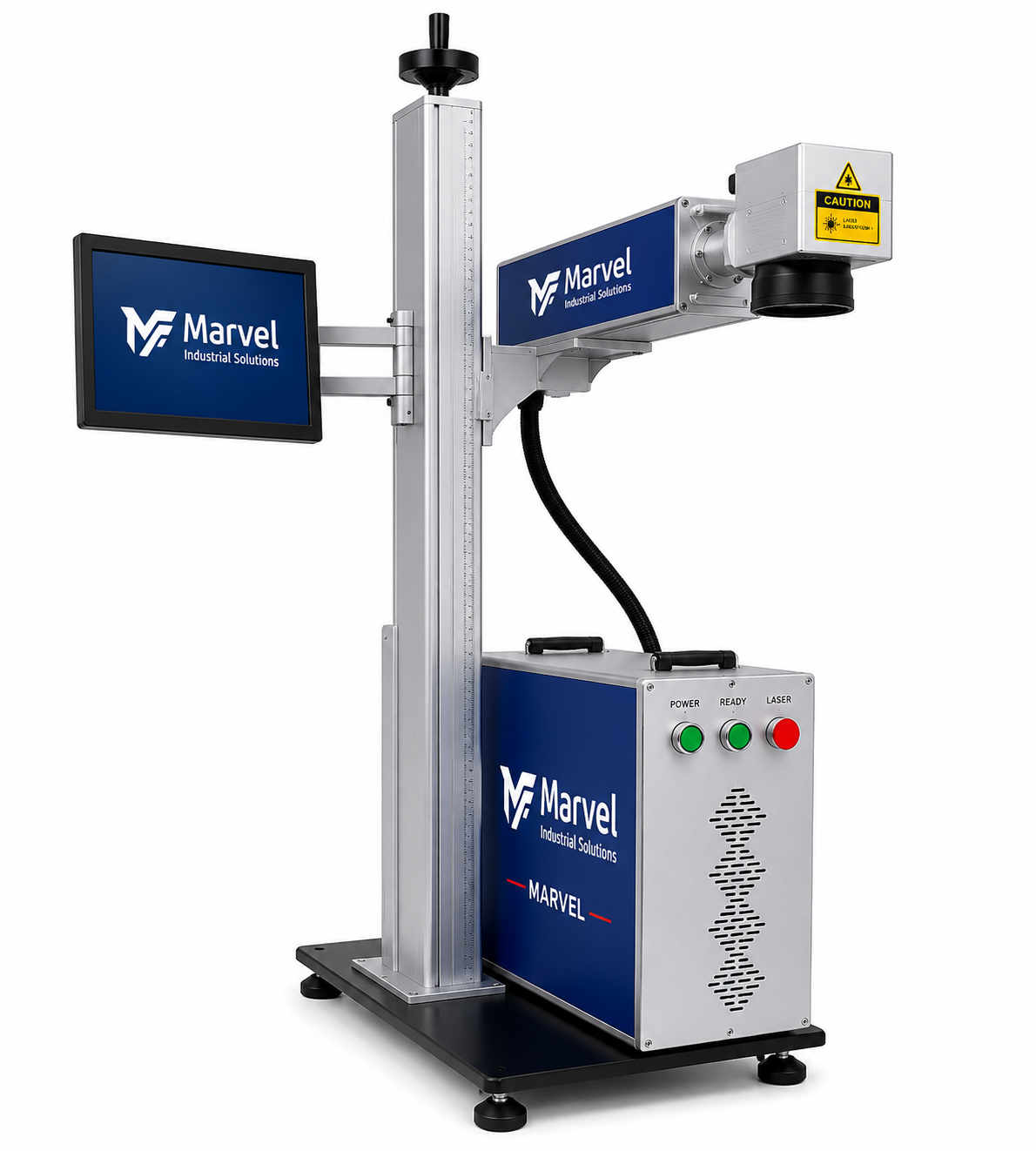

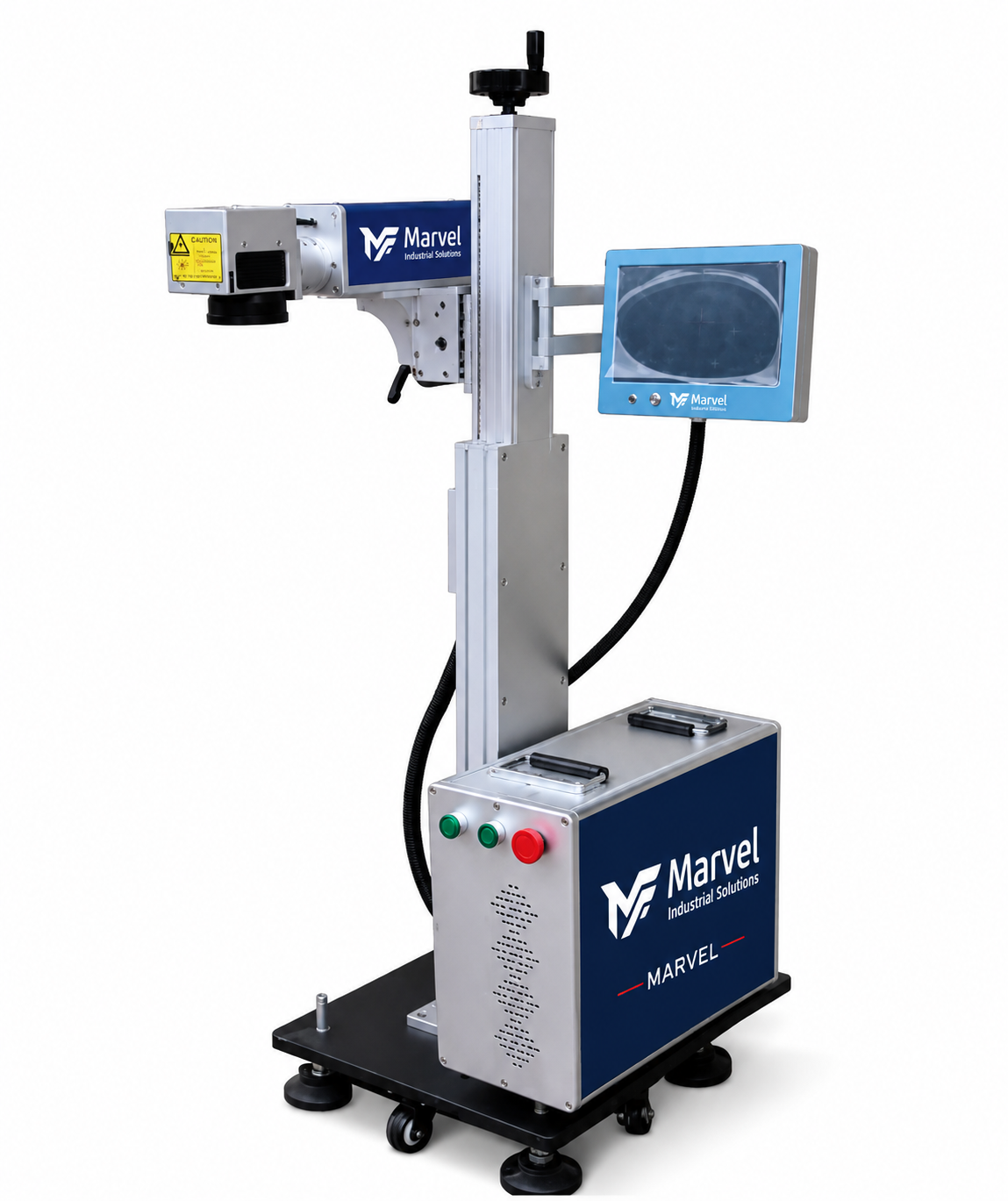

UV Fly Laser Marking Machine
Marvel Industrial Solution's UV Fly Laser Marking Machine is built for fast, permanent and non-contact coding on moving production lines. It delivers clean, high-contrast marking on sensitive packaging and precision components.
Product overview
High-Speed Online Marking for Sensitive Packaging and Products
UV fly laser marking is ideal for manufacturers who need clear, permanent coding without ink, solvent, label or contact pressure. The 355 nm UV laser creates a cold-marking effect with low heat impact, making it suitable for plastics, glass, flexible films, medical packaging, cosmetics, pharmaceuticals, food packaging, cables and precision electronic parts.
- Online fly marking for moving conveyor and packaging lines
- 355 nm UV laser for fine, high-contrast cold marking
- Marks date, batch, MRP, logo, barcode, QR code and serial data
- Suitable for plastics, glass, films, cables and precision packaging
Key features
Designed for Fast Online Coding and Clean Permanent Marks
Online Fly Marking
Encoder-based fly marking control supports permanent coding while products move continuously on conveyor lines.
Variable Data Coding
Marks batch numbers, manufacturing dates, expiry dates, MRP, serial numbers, QR codes and barcodes.
No Ink or Solvent
Non-contact laser coding removes ink cartridges, solvent handling, label waste and frequent consumable replacement.
High-Speed Production Fit
Designed for packaging, cable, pharma, cosmetic and food lines where stable coding speed is important.
Compact Integration
Adjustable stand, marking head and control cabinet can be integrated with existing conveyors and packaging machines.
Technical specifications
General UV Fly Marking Models and Machine Parameters
General Marking Capability
These are general industry-standard specifications. Final configuration can be selected based on material, line speed, marking size and production environment.
| Marking Materials | Plastics, glass, flexible films, labels, cables, cartons, foils and coated surfaces |
|---|---|
| Common Marking Content | Date, batch, MRP, expiry, logo, serial number, barcode, QR code and UID |
| Marking Area | 70 x 70 mm / 110 x 110 mm / 150 x 150 mm, depending on lens |
| Line Speed | Up to 120 m/min typical, depending on code size and material |
| Marking Type | Static marking and online fly marking |
| Model Sequence | UVF3 / UVF5 / UVF10 / UVF15 |
Core Parameters
Available as standalone or online systems for packaging, cable, film, plastic and high-speed production line use.
| Laser Source | UV laser, 355 nm |
|---|---|
| Output Power | 3 W / 5 W / 10 W / 15 W |
| Marking Speed | Up to 9000 mm/s scanner speed, application dependent |
| Fly Marking Control | Encoder, sensor trigger, variable data and production-line synchronization |
| Cooling Method | Air cooling / water cooling depending on power and duty cycle |
| Operating Voltage | Single-phase 220VAC, 50Hz |
Applications and industries
Online Coding for Packaging, Plastics and Precision Products
UV fly laser marking machines are widely used in pharmaceuticals, food packaging, cosmetics, medical packaging, flexible film, cable manufacturing, electronics, glass products, plastic components, labels and precision industrial coding applications.
- Pharmaceutical strips, bottles, caps and medical packaging
- Food, beverage, cosmetic and personal-care packaging
- Flexible films, laminated pouches, labels and cartons
- Cables, tubes, electronics and precision plastic parts
- Glass, coated surfaces and high-contrast traceability coding
Benefits and highlights
A Clean Coding Upgrade for Continuous Production Lines
Business Benefits
- Permanent codes that resist smudging, wiping and handling
- High-speed non-contact marking on moving products
- Lower consumable cost compared to inkjet and label systems
- Cleaner production area with no ink, solvent or drying time
Technical Highlights
- 355 nm wavelength for fine marks on heat-sensitive materials
- High-speed galvo scanner with encoder-based line tracking
- Supports database, serial number and variable data marking
- Installation, operator training and process support available
Working principle
How UV Fly Laser Marking Works on Moving Products
A sensor detects the product on the conveyor and an encoder tracks line speed. The controller synchronizes variable data with the UV laser and galvo scanner, allowing the focused 355 nm beam to mark while the product is moving. The UV wavelength creates photochemical marking with low heat impact, making it suitable for sensitive packaging and precision materials.
- Product sensor triggers marking at the correct position
- Encoder feedback keeps the code aligned with conveyor speed
- UV laser creates permanent marks without contact or consumables
Product inquiry
Send Inquiry for UV Fly Laser Marking Machine
Share your material, marking content, conveyor speed, product size, city and production target. Marvel Industrial Solution will contact you with the right machine guidance and quotation details.
Product enquiry
Need a UV Fly Laser Marking Machine?
Share your material, marking content, conveyor speed and production target. Marvel Industrial Solution will help you select the right UVF3, UVF5, UVF10 or UVF15 configuration.
UV Fly Laser Marking Machine Buyer's Guide
UV fly laser marking is a strong choice for businesses that need permanent, clean and high-speed coding on moving production lines. It is especially useful for packaging and precision materials where inkjet coding may smudge, consume solvents or create maintenance downtime.
Who should choose this machine?
This machine is ideal for pharmaceutical, food, cosmetic, medical packaging, flexible film, cable, electronics, glass and plastic product manufacturers that need online date coding, batch coding, QR code marking or traceability data.
Which power option is suitable?
UVF3 and UVF5 are suitable for regular packaging and fine plastic marking. UVF10 is recommended for higher line speed and stronger output. UVF15 is suitable for demanding production lines, larger codes or higher duty-cycle applications.
Why choose this product?
Marvel Industrial Solution provides practical machine selection, sample marking guidance, installation, operator training and after-sales support. The machine is suitable for businesses that want permanent coding, lower consumable cost and cleaner production line operation.
Frequently asked questions
What is UV fly laser marking?
UV fly laser marking is online laser coding where a UV laser marks products while they move on a conveyor or packaging line.
Which materials are suitable for UV laser marking?
UV laser marking is suitable for many plastics, glass, flexible films, labels, medical packaging, cables, electronics and coated packaging materials.
Can this machine replace inkjet coding?
In many packaging and product coding applications, yes. UV laser coding can reduce ink, solvent, drying and maintenance requirements while creating permanent marks.
Is operator training provided?
Yes. Marvel Industrial Solution provides installation, operator training and after-sales support for industrial users.
