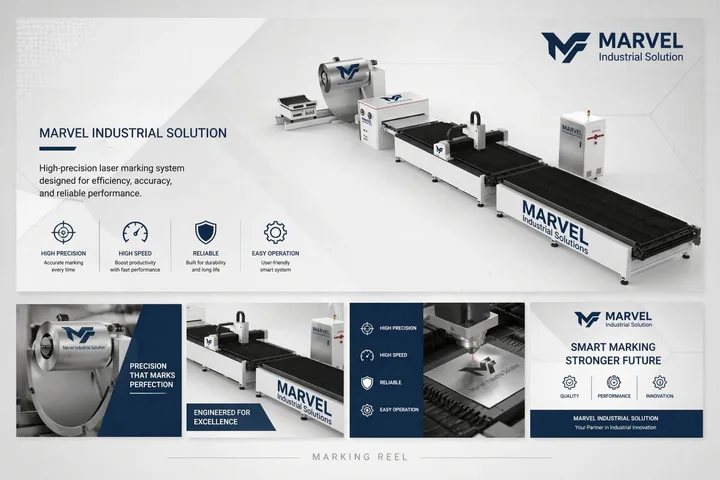

Auto Feeding Fiber Laser Cutting Machine with Decoiler Straightener

Last Updated: July 2026

The High Power Fiber Laser Cutting Machine with Decoiler Straightener is a fully automated metal processing solution designed for continuous coil-fed cutting operations. It integrates decoiling, straightening, feeding and fiber laser cutting into one efficient production line.

Continuous production directly from metal coils
Reduced manual sheet handling and labor cost
High precision cutting with intelligent CNC control
Ideal for mass production and industrial sheet metal processing

Get Quote Call Expert

Overview

Continuous Coil-Fed Cutting for Higher Productivity

This automated system transforms metal coils directly into finished laser-cut parts. By combining a heavy-duty decoiler, precision straightener and high power fiber laser cutting machine, it delivers consistent quality, reduced material waste and significant labor savings for large-scale manufacturing.

Automatic Coil Feeding

Integrated decoiler enables smooth coil unwinding, continuous feeding and reliable handling of heavy-duty metal coils.

Precision Straightening

Multi-roller straightener removes coil memory and deformation, improving flatness, accuracy and repeatability.

High Power Fiber Laser

Available from 3kW to 12kW or higher for fast cutting of thick materials with stable, low-maintenance performance.

Fully Automated Workflow

Decoiling, straightening, feeding and cutting work together to reduce manual intervention and improve output.

Advanced CNC Control

Intelligent nesting, real-time monitoring and CypCut / FSCUT compatible controls maximize material utilization.

Heavy-Duty Structure

Reinforced frame design reduces vibration and supports continuous industrial use with long service life.

Technical specifications

Machine Parameters

Laser Power	3kW - 12kW+
Working Width	Up to 1500 mm, customizable
Coil Weight Capacity	5 - 15 Ton
Sheet Thickness	0.5 mm - 25 mm, material dependent
Feeding Accuracy	+/-0.1 mm
Max Cutting Speed	Up to 120 m/min
Power Supply	3 Phase, 380V / 50Hz

Applications

Built for Mass Production Industries

This coil-fed laser line is widely used where speed, repeatability and low handling time are critical.

Automotive component manufacturing
Electrical panel production
Steel furniture industry
HVAC duct manufacturing
Elevator parts production
Industrial sheet metal processing

Materials

Compatible Metals

Mild Steel (MS)
Stainless Steel (SS)
Aluminum
Galvanized Iron (GI)
Copper
Brass

Advantages and safety

Designed for Output, Quality and Safe Operation

Production Advantages

Fully automated production, higher output, reduced material waste, consistent precision and lower operational costs.

Safety Features

Coil handling safety, emergency stop, overload protection, optional laser enclosure and fault detection sensors.

Why Choose This Machine?

It turns coil material directly into finished parts with unmatched speed and accuracy for modern manufacturing.

Product inquiry

Send Inquiry for Auto Feeding Fiber Laser Cutting Machine with Decoiler Straightener

Share your material, thickness, sheet size, city and production target. Marvel Industrial Solution will contact you with the right machine guidance and quotation details.

Automation quote

Need a Coil-Fed Laser Cutting Line for Your Factory?

Share your coil size, material, thickness, power requirement and expected production output. We will suggest the right configuration.

Request Quotation Send Requirement
