Automatic Press Loading
Loads blanks into mechanical or hydraulic presses and unloads finished components with accurate positioning.
Special Purpose Machine
Stamping Press Transfer Robot

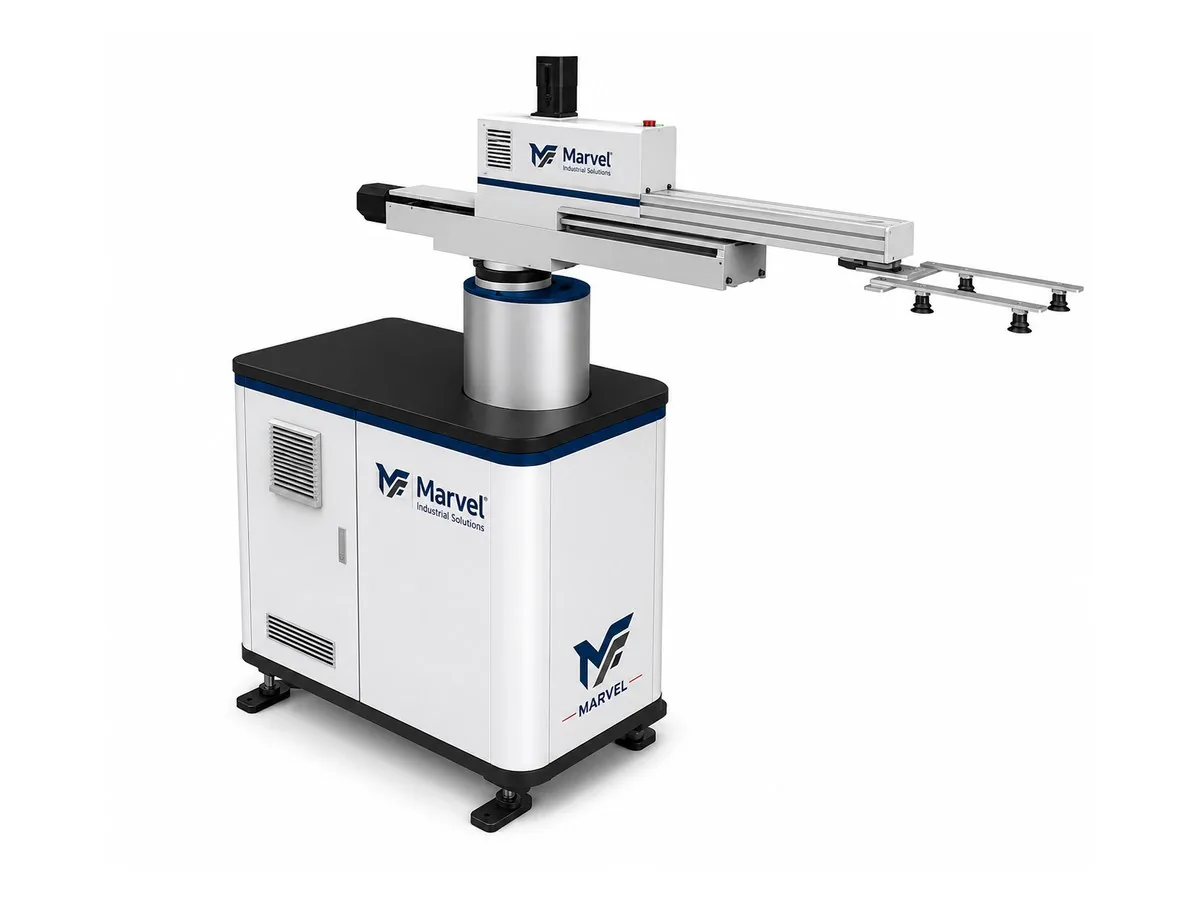

The Stamping Press Transfer Robot by Marvel Industrial Solution is an advanced automation solution designed for automatic loading, unloading, transferring and precise positioning of sheet metal components in mechanical and hydraulic press machines. Built for high-speed industrial production, it replaces manual handling while improving productivity, operator safety and manufacturing consistency.
Product overview
High-Speed Press Automation for Sheet Metal Components
Available in 4-axis and optional 5-axis configurations, the robot offers accurate positioning, rapid transfer speeds and seamless integration with new or existing press lines. It supports automotive parts, electrical enclosures, kitchenware, hardware and precision metal components.
- Automatic loading and unloading of press machines
- High-speed sheet metal transfer with servo-controlled movement
- 4-axis and optional 5-axis configurations with repeatability up to +/-0.1 mm
- Custom pneumatic, vacuum, magnetic and double gripper options
Key features
Designed for Fast, Repeatable and Safe Press Transfer
Press-to-Press Transfer
Transfers parts between presses, conveyors or stacking stations for continuous stamping line automation.
High Repeatability
Servo-controlled motion supports repeatability up to +/-0.1 mm for consistent part placement and quality.
Flexible Working Radius
Large working radius and 4-axis or optional 5-axis motion support different die layouts and component sizes.
Touchscreen HMI
PLC-based control with touchscreen HMI enables easy programming, operation and production changeover.
Industrial Duty Design
Compact floor-mounted construction, single-phase 220V operation and robust build for continuous production.
Key benefits
Increase Output and Improve Press Shop Safety
Higher Production Output
Faster transfer cycles and uninterrupted operation help increase press-line productivity.
Reduced Labour Cost
Automates repetitive loading, unloading and transfer tasks to reduce manual labour dependency.
Improved Operator Safety
Keeps operators away from press die areas and repetitive sheet metal handling tasks.
Consistent Part Quality
Accurate positioning minimizes component damage, rejection and variation during press operations.
Applications
Ideal for Mechanical and Hydraulic Press Automation
The Stamping Press Transfer Robot is suitable for high-speed stamping lines, metal forming operations and automated component handling across press-shop environments.
- Mechanical press automation, hydraulic press automation and progressive die stamping
- Sheet metal transfer, blank loading and unloading, and press-to-press transfer
- Automated component handling, stamping line automation and production line automation
- Automotive, appliance, kitchenware, electrical panel and hardware manufacturing
- Compatible with press capacities from 25 ton to 200 ton depending on application
Working process
Automated Press Transfer Cycle
Material Pick-Up
The robot picks sheet metal blanks using customized vacuum, magnetic or pneumatic grippers.
Press Loading
The workpiece is accurately positioned into the press die for precise alignment before operation.
Automatic Transfer
After stamping, the robot removes the finished part and transfers it to the next press, conveyor or stacker.
Continuous Production
The programmed cycle repeats continuously for high-speed production with repeatable accuracy.
Available models
Stamping Press Transfer Robot Specifications
10 kg Payload Model - 4/5 Axis
| Rated Payload | 10 kg |
|---|---|
| Working Radius | 1450 mm |
| Number of Axes | 4 Axis / Optional 5 Axis |
| Repeat Accuracy | +/-0.1 mm |
| Robot Weight | Approx. 230 kg including wooden crate |
| Installation | Floor mounted |
| Power Supply | Single phase 220V |
| Rated Power | 2.3 kW |
5 kg Payload Model - 4 Axis
| Rated Payload | 5 kg |
|---|---|
| Working Radius | 1250 mm |
| Number of Axes | 4 Axis |
| Repeat Accuracy | +/-0.1 mm |
| Robot Weight | Approx. 230 kg |
| Installation | Floor mounted |
| Power Supply | Single phase 220V |
| Rated Power | 2.3 kW |
Axis details
Axis Travel and Maximum Speed
10 kg Payload Axis Specifications
| Vertical Z Axis | 400 mm travel, 500 mm/sec maximum speed |
|---|---|
| Swing Arm | +/-160 deg travel, 225 deg/sec maximum speed |
| Forward / Backward | 650 mm travel, 2000 mm/sec maximum speed |
| Rotation | +/-360 deg travel, 360 deg/sec maximum speed |
| Flip Axis | +/-360 deg travel, 360 deg/sec maximum speed |
5 kg Payload Axis Specifications
| Vertical Axis | 400 mm travel, 500 mm/sec maximum speed |
|---|---|
| Swing Arm | +/-160 deg travel, 225 deg/sec maximum speed |
| Forward / Backward | 450 mm travel, 2000 mm/sec maximum speed |
| Rotation | +/-360 deg travel, 360 deg/sec maximum speed |
Configuration
Electrical Configuration and Optional Accessories
Electrical Components
| Robot Controller | Naiwei |
|---|---|
| Touch Screen HMI | Kinco |
| Servo Motor | Delixi / JMC |
| Power Supply | Delta / Mornsun |
| Electrical Components | People's Electric / Chint |
| Timing Belt | Optibelt Germany / Elatech |
Optional Accessories
- Pneumatic, vacuum, magnetic or double gripper system
- Vision inspection system and safety light curtain
- Conveyor synchronization and multiple press interlinking
- Automatic stacking system and customized EOAT
Why Marvel
Why Choose Marvel Industrial Solution
Press Automation Expertise
Marvel designs intelligent robotic automation systems tailored to modern press-shop production needs.
Custom Gripper Design
Payload, working radius, grippers, control systems and automation features are customized for your production requirement.
Reliable Components
High-quality industrial components support reliable performance, precision and long service life.
After-Sales Support
Our engineering team supports installation, commissioning, service and long-term automation performance.
Product inquiry
Send Inquiry for Stamping Press Transfer Robot
Share your press capacity, component size, die dimensions, press stroke, cycle time and payload requirement. Marvel Industrial Solution will help select the right press transfer robot configuration.
Press automation consultation
Ready to Automate Your Press Line?
Boost productivity, improve workplace safety and achieve consistent high-speed stamping operations with Marvel Industrial Solution's Stamping Press Transfer Robot.
